In the final instalment of my posts giving a summary of the northern mid-latitudes of Mars, I will present the Phlegra Montes area, in the easternmost part (if you're working with -180 to 180° longitudes as I am) of the northern hemisphere.

This area has some special interest taken in it lately, with a paper giving evidence for wet-based glaciation in the area written recently  Eskers in a complete, wet-based glacial system in the Phlegra Montes region, Mars (Gallagher and Balme 2015). link

The HRSC tiles h1423, h1628 and h1412 overlaid on MOC image mosaic and colourised by elevation.

I use the same elevation colour ramp for HRSC tiles as in Utopia Planitia as follows:

MOLA elevation alone.

Hillshaded MOLA elevation.

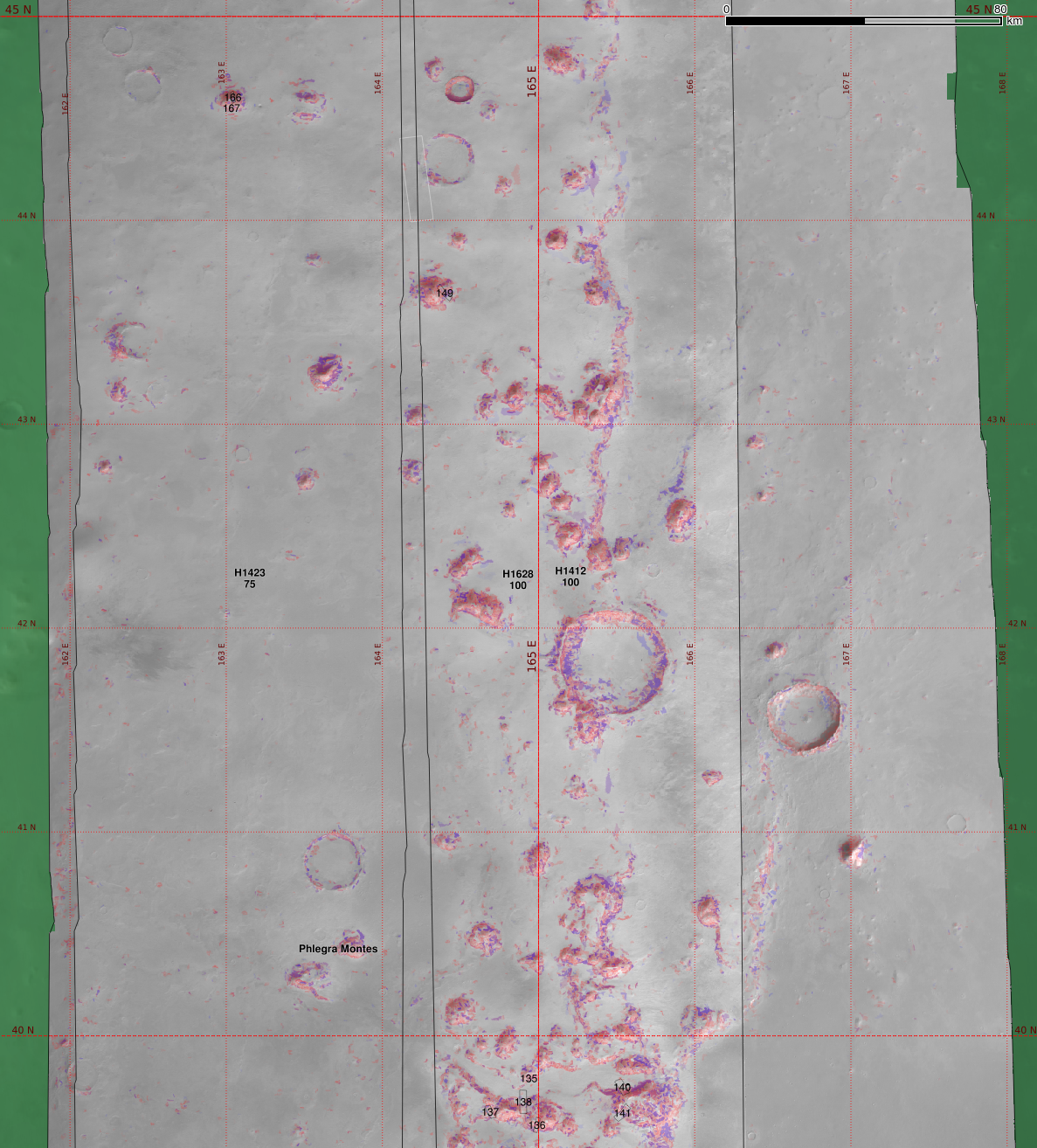

Northernmost region:

With classifier functions for 'head' and 'extent'.

Two Souness GLFs are just missed by the HRSC coverage.

A little further south:

Relatively few Souness GLFs are found in this area.

In this region the GLFs are often found around relatively small isolated mesas, though many some of these do not host a catalogued GLF and look similar to the classifier.

Close up of region around Souness 167 and 168.

HRSC nadir image.

With classifier function.



Central region of Phlegra Montes:

A number of Souness GLFs are found in this area.

With classifier function

Zooming in a bit more

A little to the south of the previous image

Further to the south again

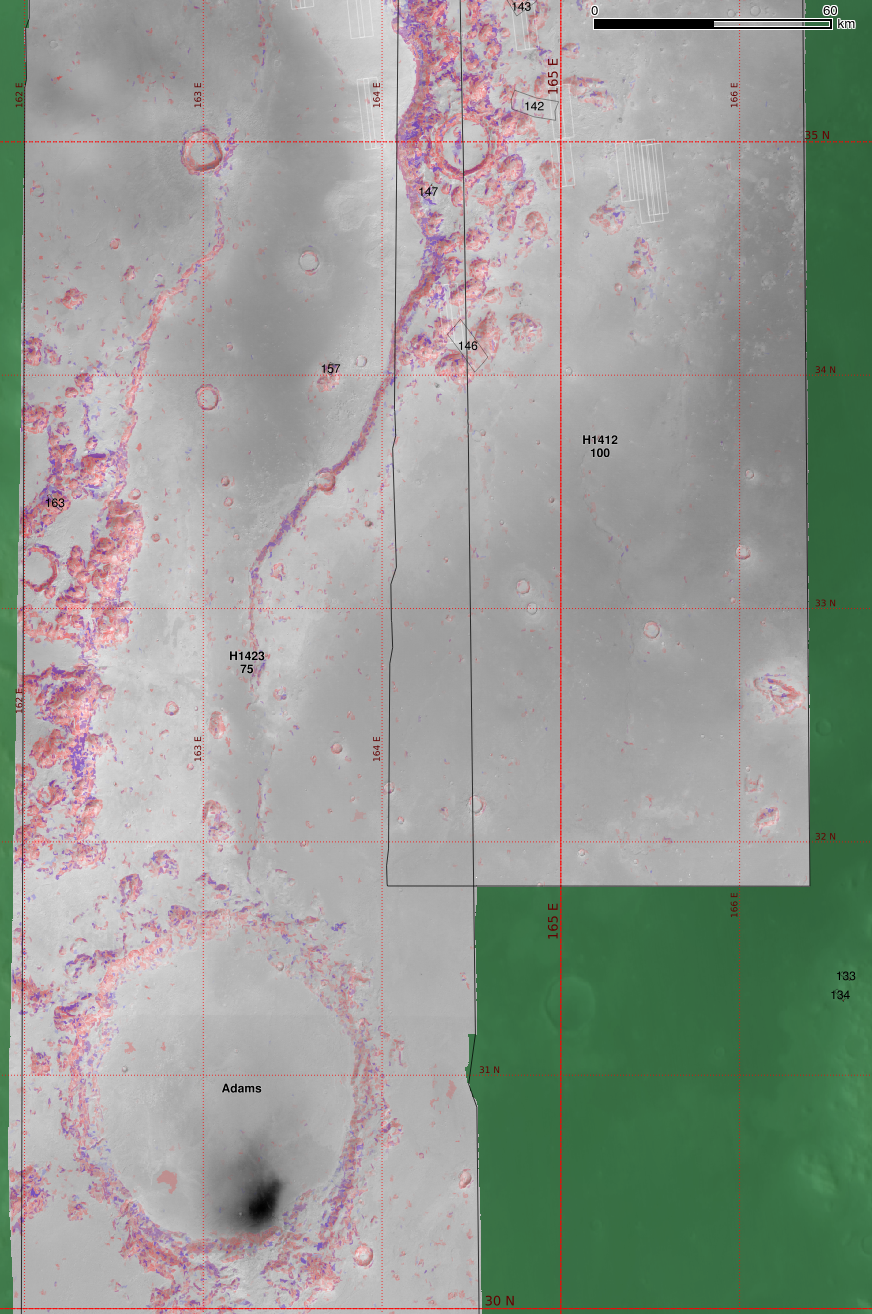

Southern Phlegra Montes area

This covers the same region as the study areas of the Gallagher and Balme 2015 paper. They postulate wet-based glaciation in this area, arguing this was made possible by geothermal heat flux.

Nadir images.

With the classifier.

The detailed study area from the paper at ~163°E, 32.5°N, with a lineated valley fill at the left and the postulated wet-based glacial forms including sinuous ridges near the centre of this image.

HRSC nadir image

With the classifier.

Most of the North of Mars is covered by a low, flat plain.

As such, there are few Souness GLFs, these being found in the walls of craters.

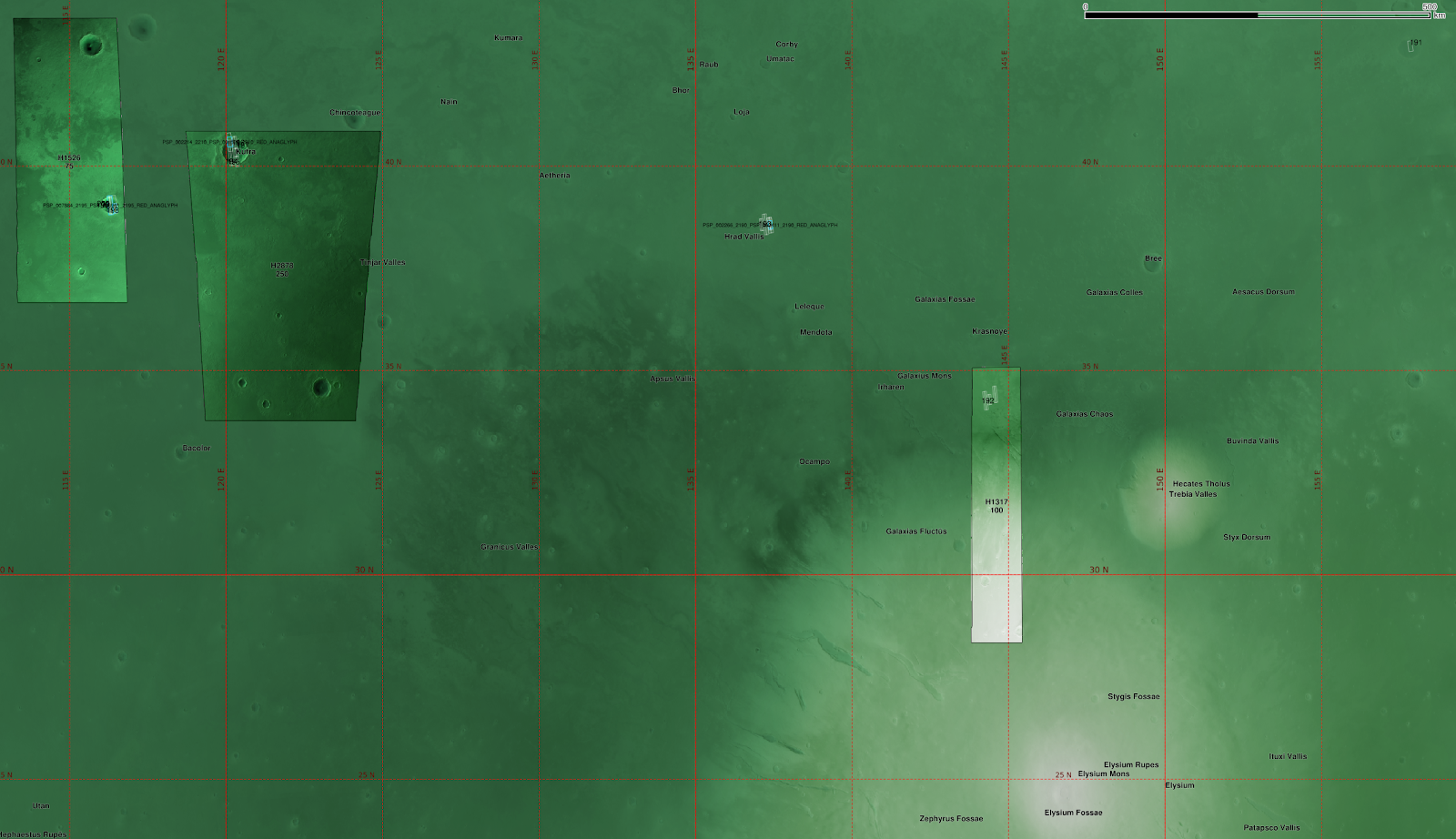

Here is the area of part of Utopia Planitia, north of the shield volcanoes Elysium Mons and Hecates Tholus.

I had originally titled this 'Elysium Planitia' which is in fact in another location south of the Elysium Mons massif. The URL will continue to reflect that.

Overview

Screenshot from Google Earth showing colourised hillshaded MOLA elevation



A small number of Souness GLFs are found inside craters in Utopia Planitia.

Elevation colour ramp used for HRSC tiles in this area.

Hillshaded MOLA elevation.

MOLA elevation colour ramp.

 Four HiRISE anaglyphs overlap or are in the vicinity of Souness GLFs:

• PSP_007884_2195 (overlapping S198)
• PSP_004192_2195 (within same crater as S198)
• PSP_002214_2210  (in crater Kufra at 120°E, 40.5°N, where there are 4 Souness GLFs found.)
• PSP_002266_2190 (at 137°E, 38.5°N near S193, not covered by a HRSC DTM)

Zooming into the area covered by HRSC tiles h1526 and h2878.

Zooming in further to several areas of interest:

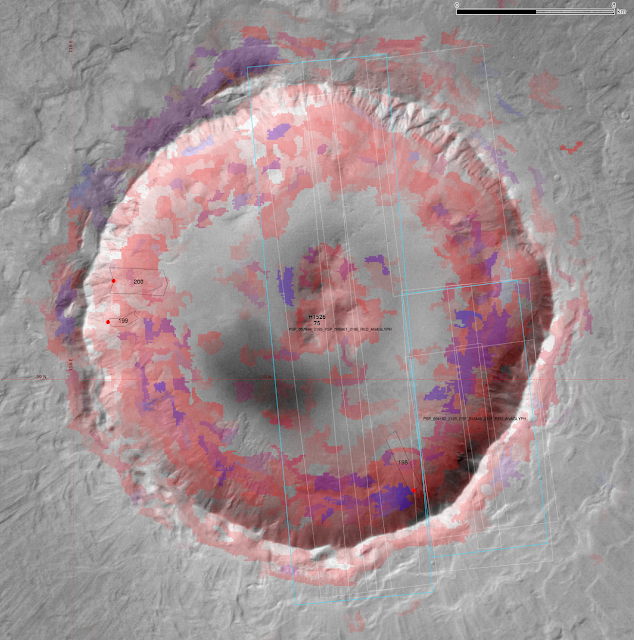

Crater at 116°E, 39°N containing 3 Souness GLFs, with HiRISE anaglyph coverage of one of them. HRSC tile h1526 nadir image with the classifier results.

3D anaglyph PSP_007884_2195

A crater further north in tile h1526 at 43°N without any catalogued Souness GLFs, though there looks to be remnants of some kind of flow features.

Classifier results show topography favoured for glaciers.

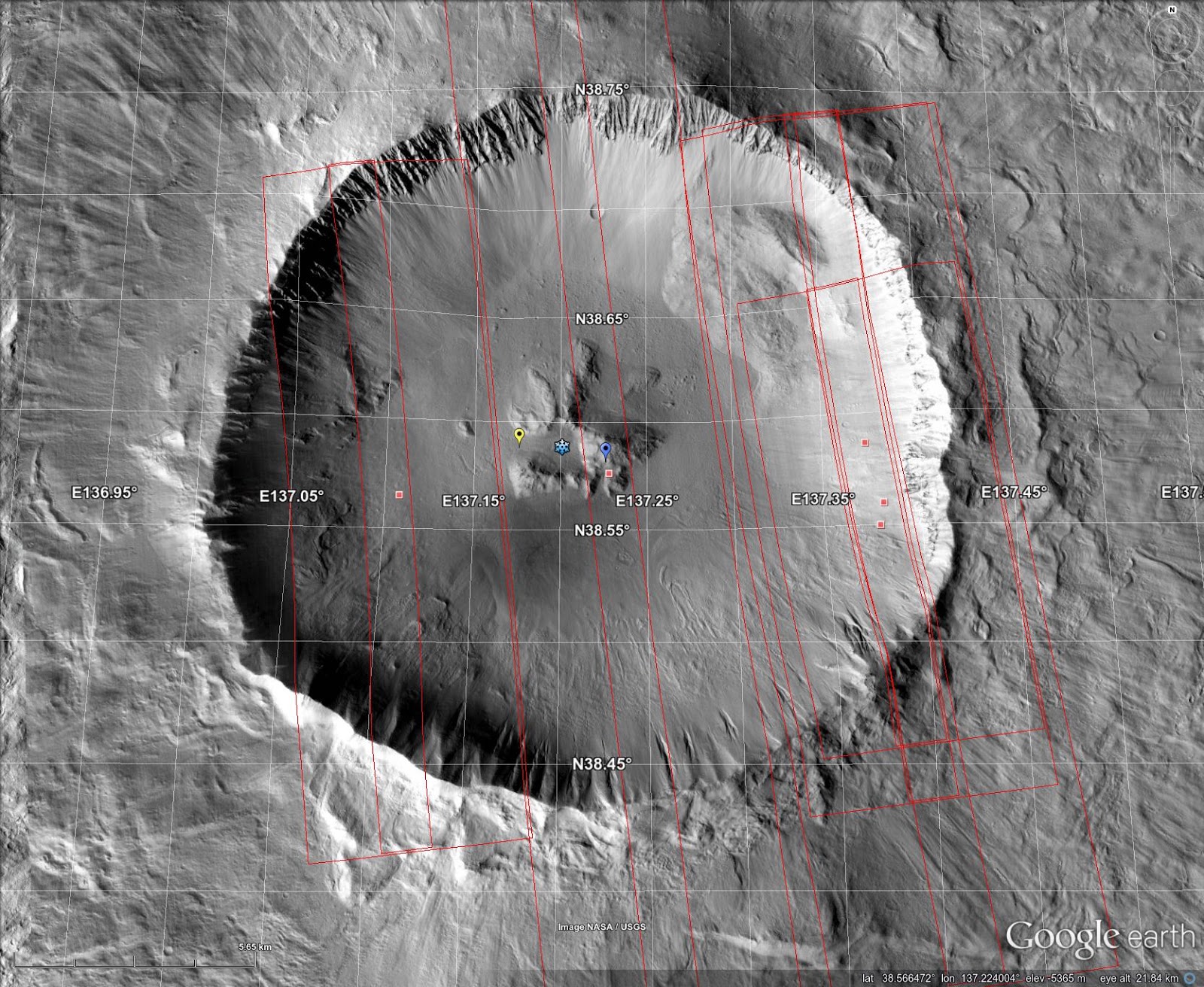

Google Earth screenshot with HiRISE CTX imagery of crater containing Souness 193 which is not covered by any HRSC DTM tiles. The HiRISE anaglyph referenced earlier covers a portion of the eastern wall.

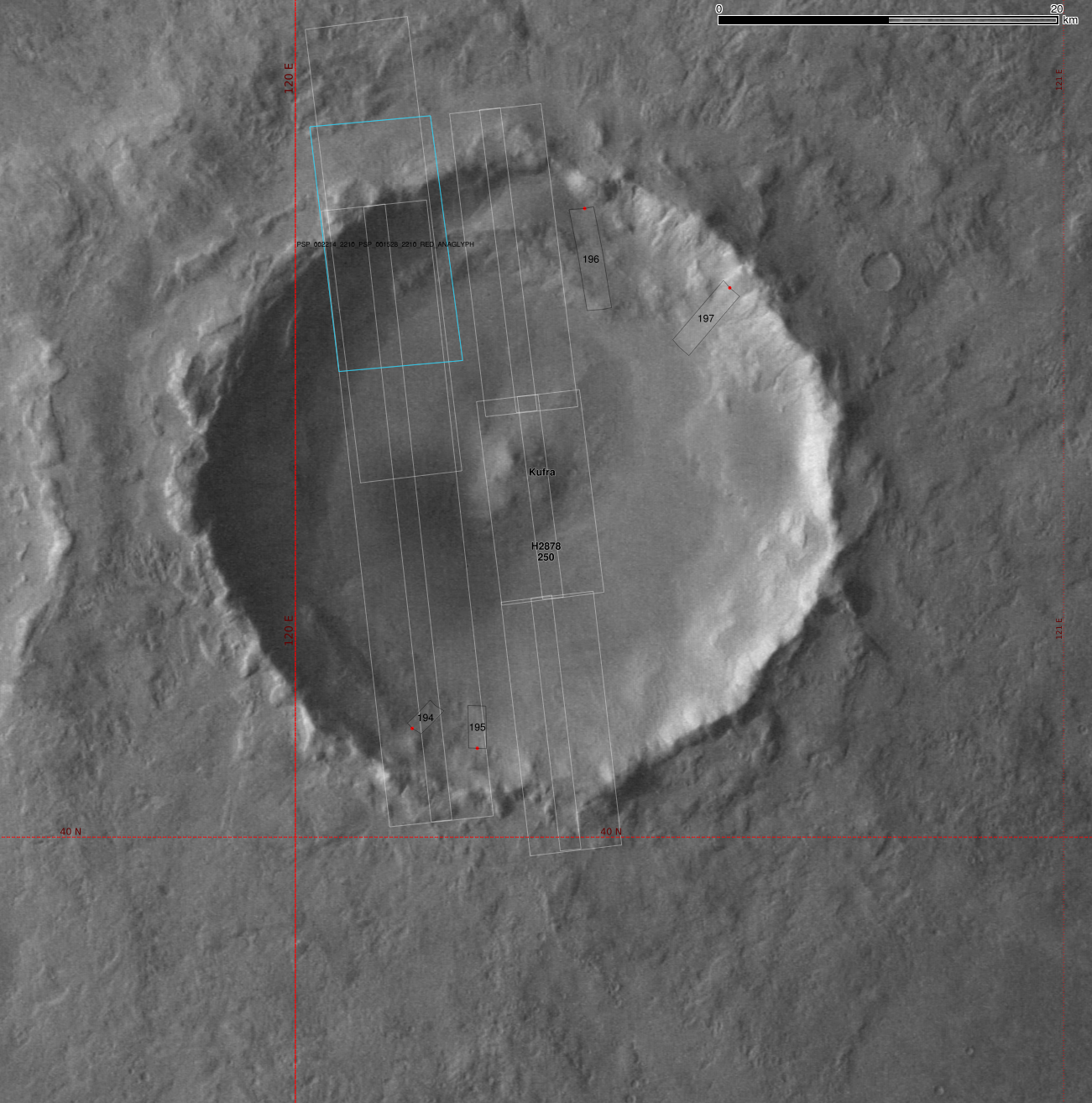

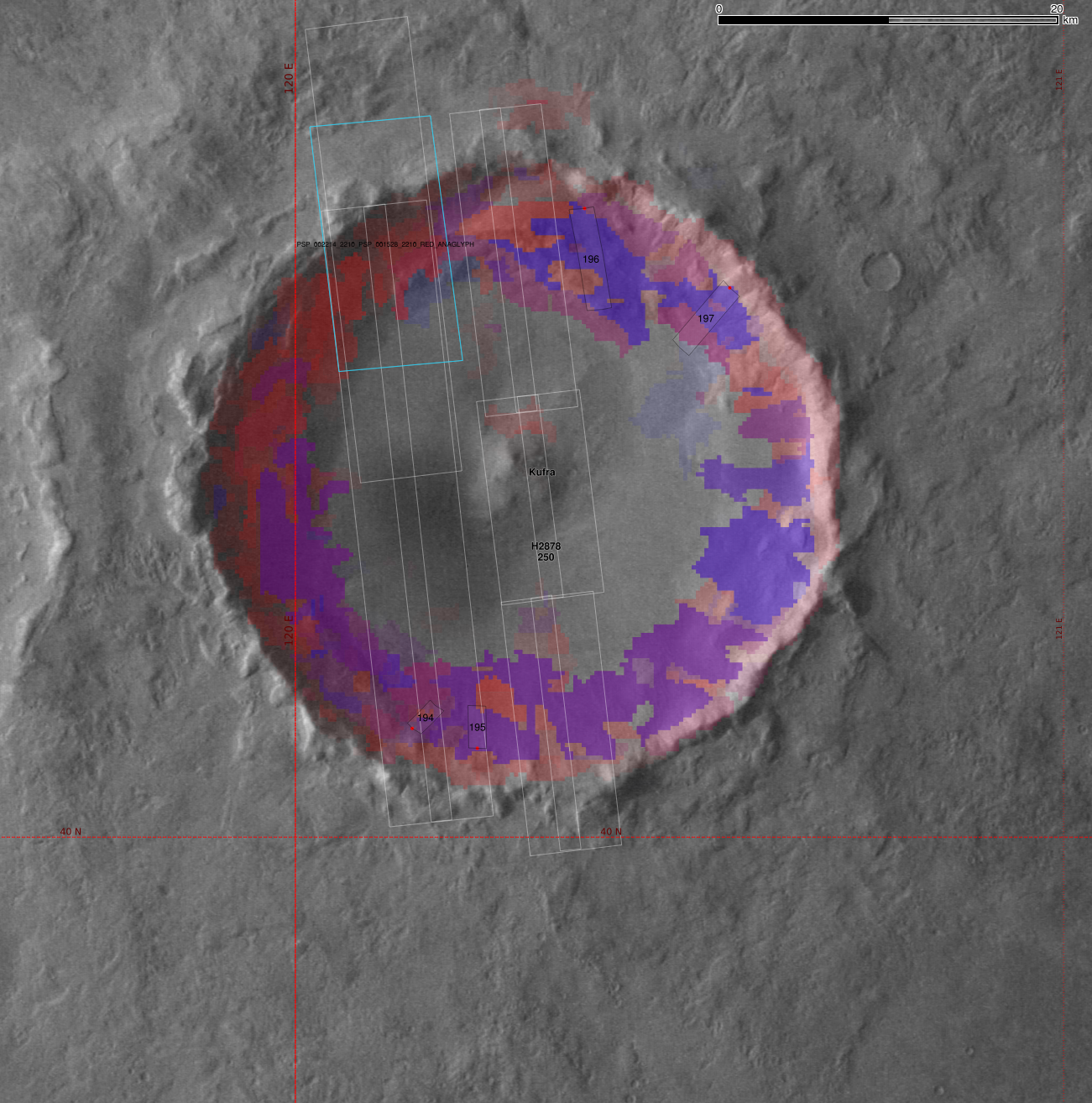

Kufra Crater at 120°E, 40°N. (HRSC tile h2878 nadir image)

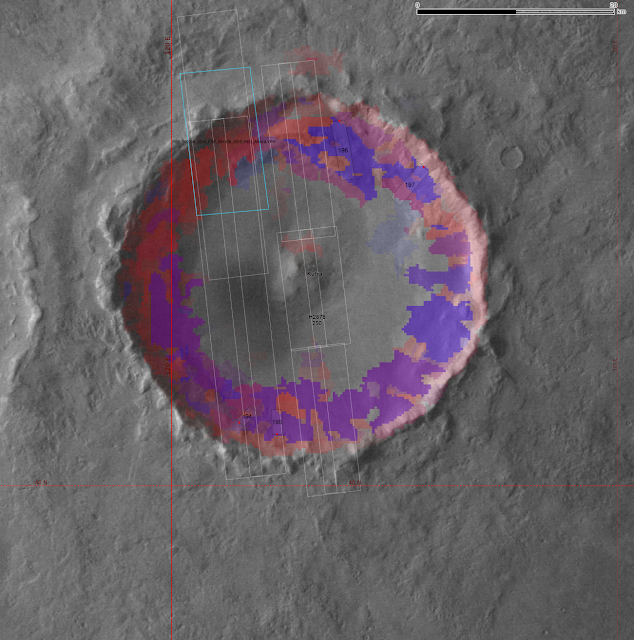

Bayesian classifier results (note DTM is only at 250m resolution).

Google Earth screenshot of HiRISE CTX imagery of Kufra crater.

Continuing the exploration of the northern hemisphere elevation dichotomy boundary eastward, the Nilosyrtis Mensae area is also rich in Souness glacier-like forms:

HRSC DTMs blended with nadir image.

This is the elevation colour ramp used for all HRSC DTMs in this region.

MOLA elevation.

MOLA elevation blended with hillshade.

Auqukuh Vallis (word for 'Mars' in Quechua)

The Auqukuh Vallis system shows some striking examples of GLFs, and is highly favoured by the Bayesian classifier:

HRSC DTM (tile h1446 at 61°E, 31°N) blended with nadir image. Two Souness GLFs are found within this area, including HiRISE anaglyph coverage of the terminus of S312 (PSP_003482_2115).

The nadir image alone.

Nadir image with classifier for head (red) and extent (blue) areas overplotted.

Another part of the Auqukuh Vallis system at 62°E, 32°N:

Five Souness GLFs are shown in this region, with HRSC DTMs of h1446 and h5173 overlaid on nadir images.

Nadir image alone

With classifier overplotted.

A curious feature at 62.5°E, 32.5°N.

Eastern Nilosyrtis

Around 68°-75°E,  28°-34°N:

HRSC DTM tiles (h1391, h5378, h5360, h5342, h5324, h5306) blended with nadir image.

Nadir images only.

Nadir images with classifier overplotted.

The HiRISE anaglyphs ESP_013160_2135, ESP_020597_2135 and ESP_014307_2130 are in the vicinity of, but do not overlap Souness GLFs.

Closeup of part of tile h5342:

Many Souness GLFs are to be found in this area around 73°E, 30°N.

The classifier picks out areas of the south side of the mesa which do not have Souness GLFs catalogued. Is it possible that glaciers in south facing areas at this relatively low latitude for Souness GLFs were ablated more readily?

Closeup of part of tile h5306 around 75°E, 30°N:

Again the 2 Souness catalogued GLFs are found on the northern side of the mesa only.

HiRISE 3D anaglyph ESP_027823_2100 showing S204.

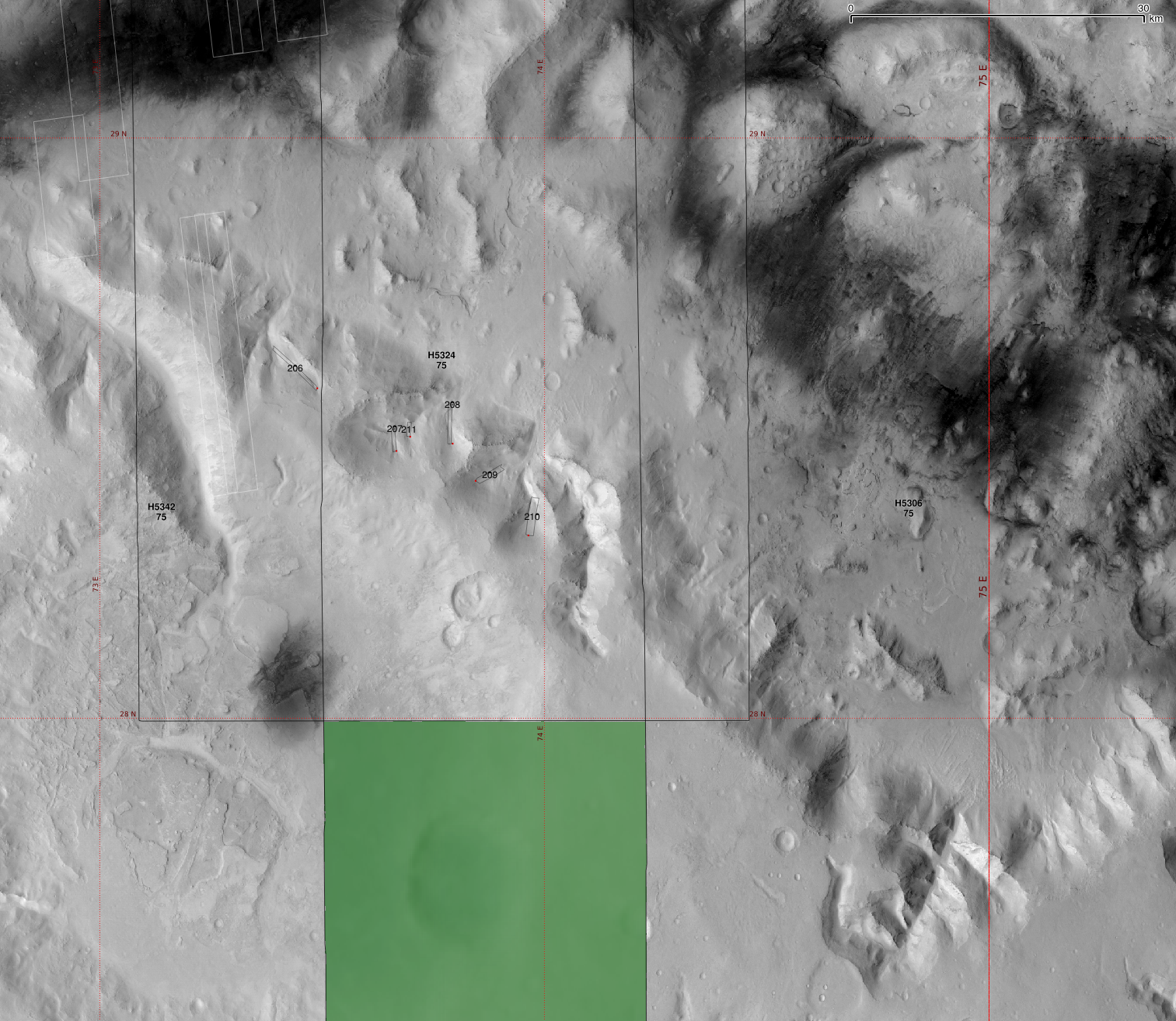

Close up of h5234/h5306, showing an area further south at 28-29°N:

The southern valleys below 28°N have no Souness catalogued GLFs. The set around 74°E, 28.5°N are the southernmost Souness GLFs in the entire northern hemisphere, except S201 at 77.15°E, 27.78°N at two others in crater Lockyer at 160°E. 27.5°N.

Nadir images only

Nadir images with classifier.

A closer view. The size of the alcoves suggests that the GLFs here may be the remnants of larger objects that have ablated.

To the east of the Deuteronilus Mensae region in the northern mid-latitudes of Mars, there is the Protonilus Mensae region, also on the elevation dichotomy boundary, and there are many Souness GLFs found there.

HRSC tiles with elevation blended with nadir image.

Elevation colour ramp used for all the HRSC DTMs in this area.

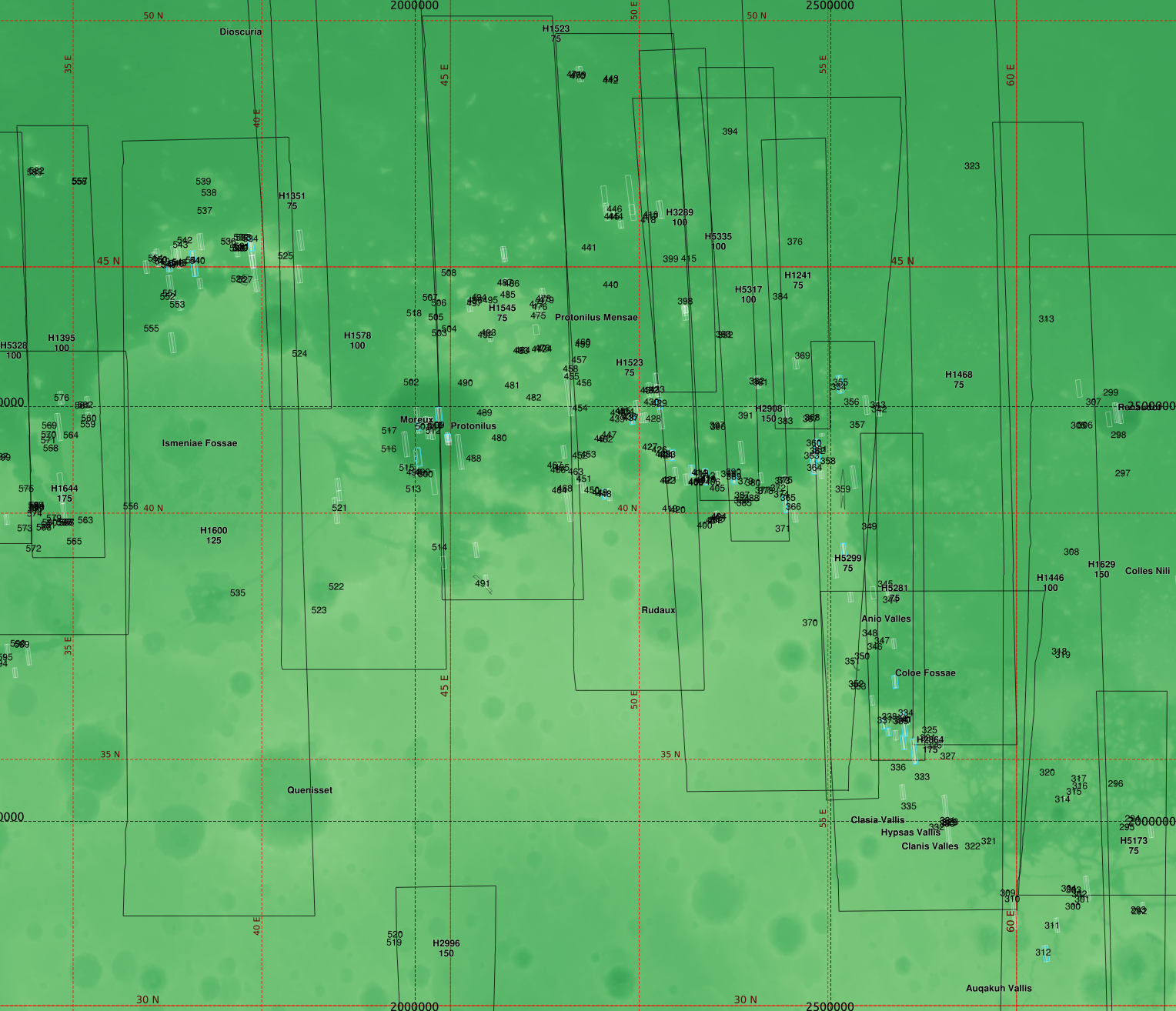

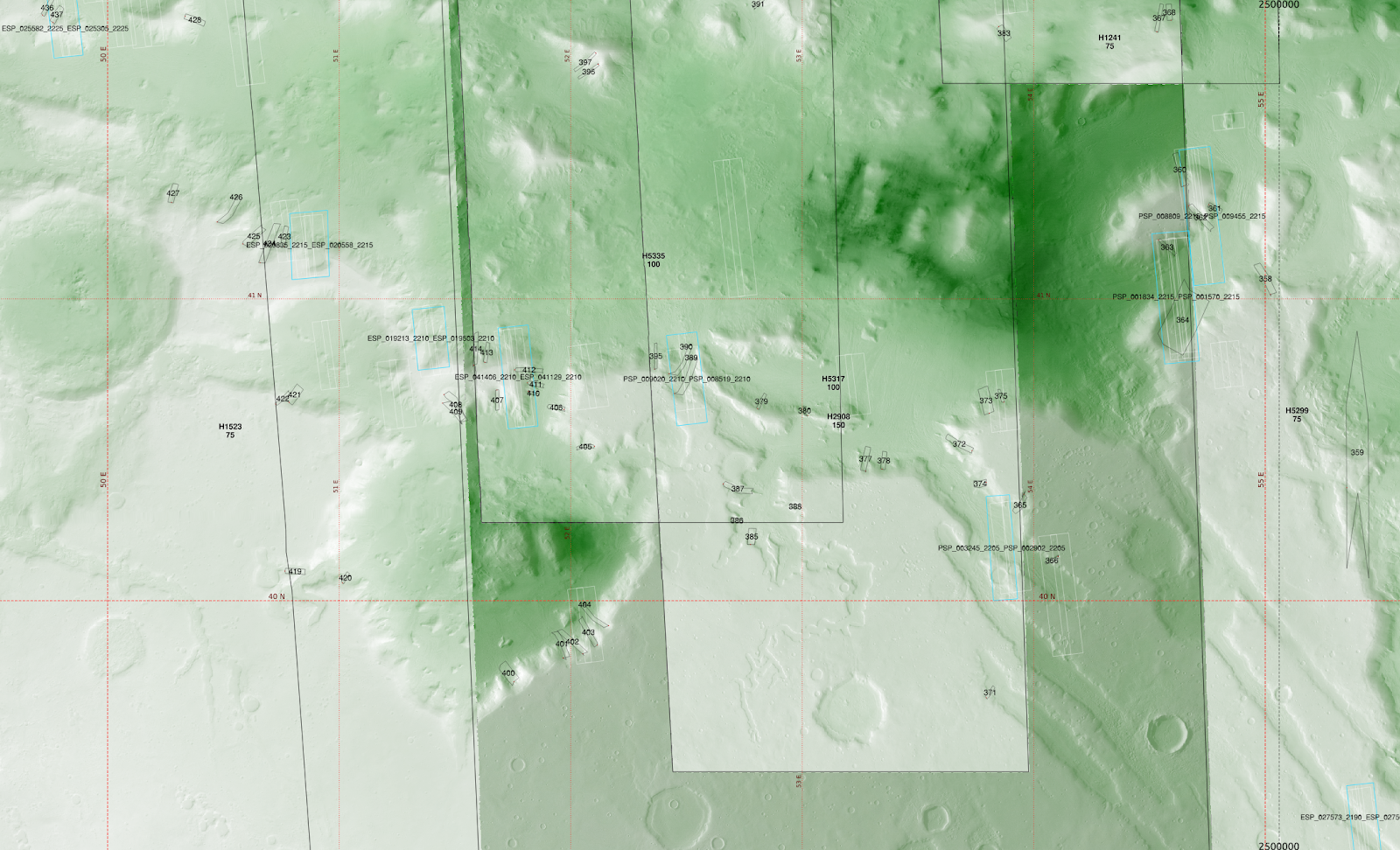

MOLA elevation

MOLA elevation blended with hillshade

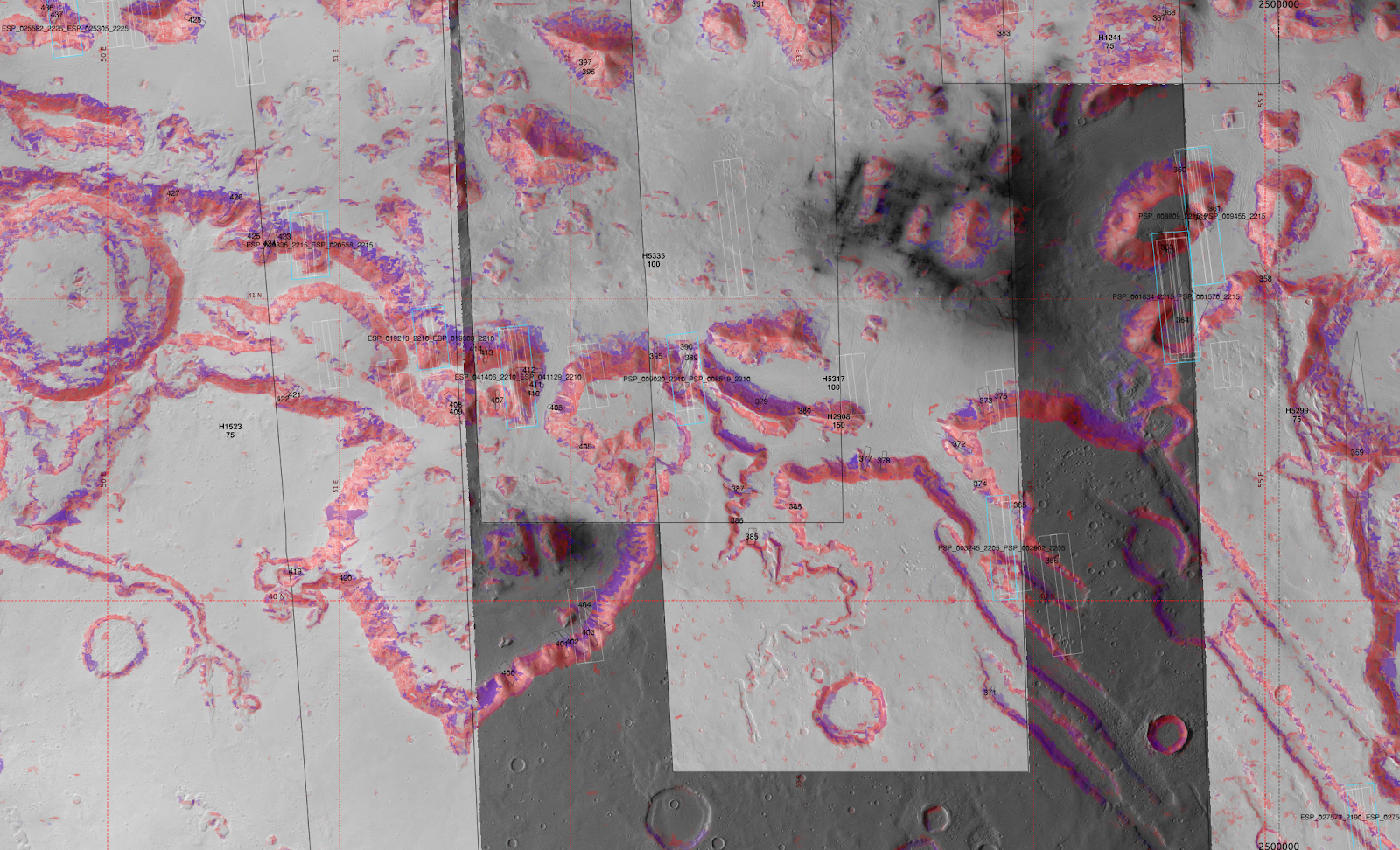

There are rather more than I will have the opportunity to examine in any fine detail here, but here are several regions showing Souness GLF extents, and where 3D anaglyph coverage exists. Hopefully the labels of these are large enough to be visible, and you can look these up at www.uahirise.org/anaglyph.

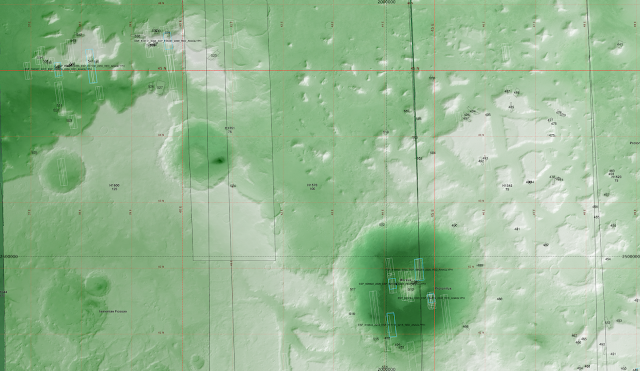

 Near Moreaux crater  (centred ~ 43°E, 43°N)

Several HiRISE 3D anaglyphs are found overlapping or in the vicinity of Souness GLFs:

• ESP_035327_2255
• ESP_016418_2255
• ESP_016141_2260
• ESP_016642_2215
• ESP_020822_2220
• PSP_010695_2225
• ESP_033784_2220

North of Rudeau crater (~ 53°E, 41°N)

3D anaglyphs:

• ESP_025582_2225
• ESP_020835_2215
• ESP_041406_2210
• PSP_009020_2210
• PSP_003245_2205
• PSP_001834_2215
• PSP_008809_2215

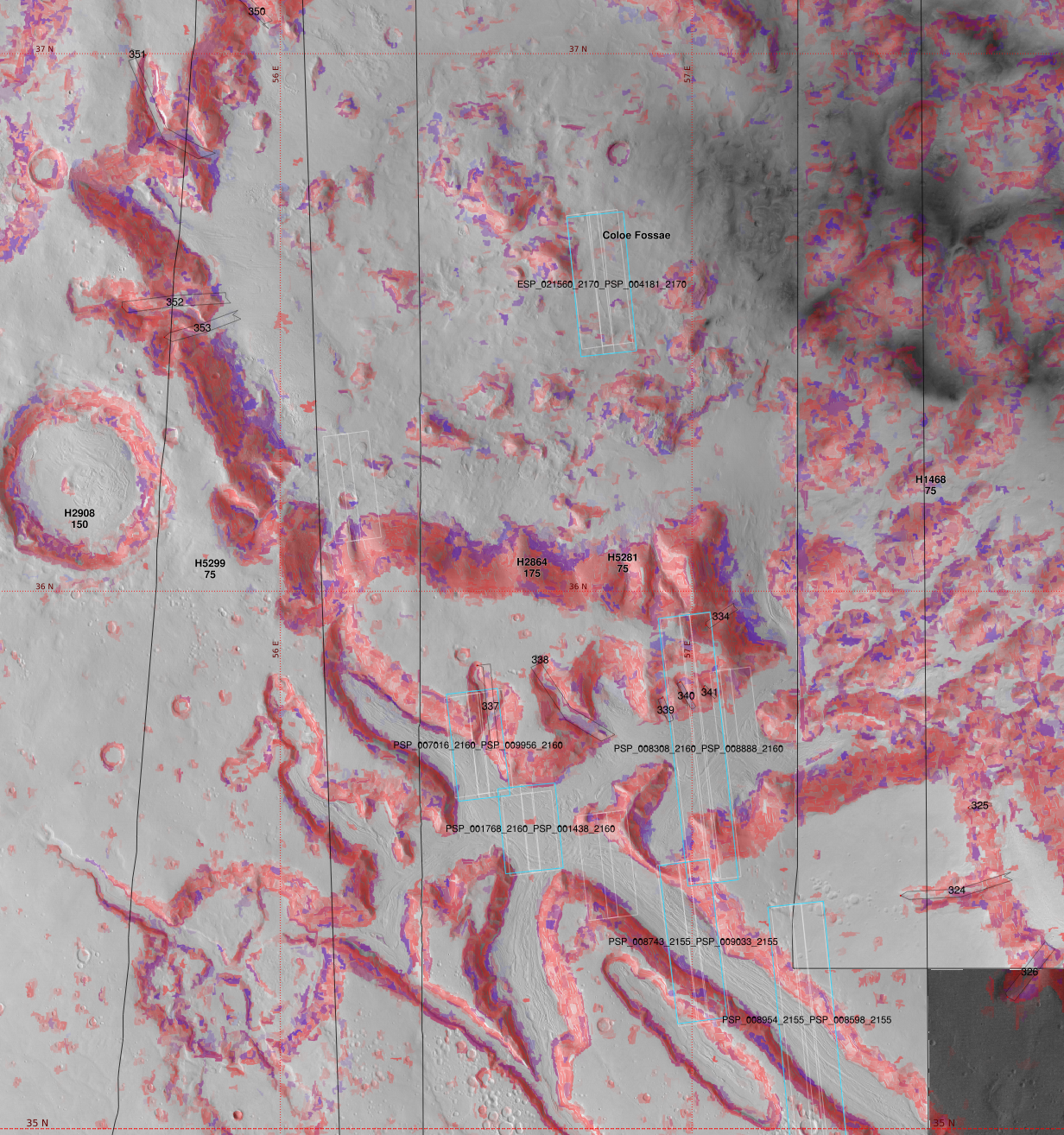

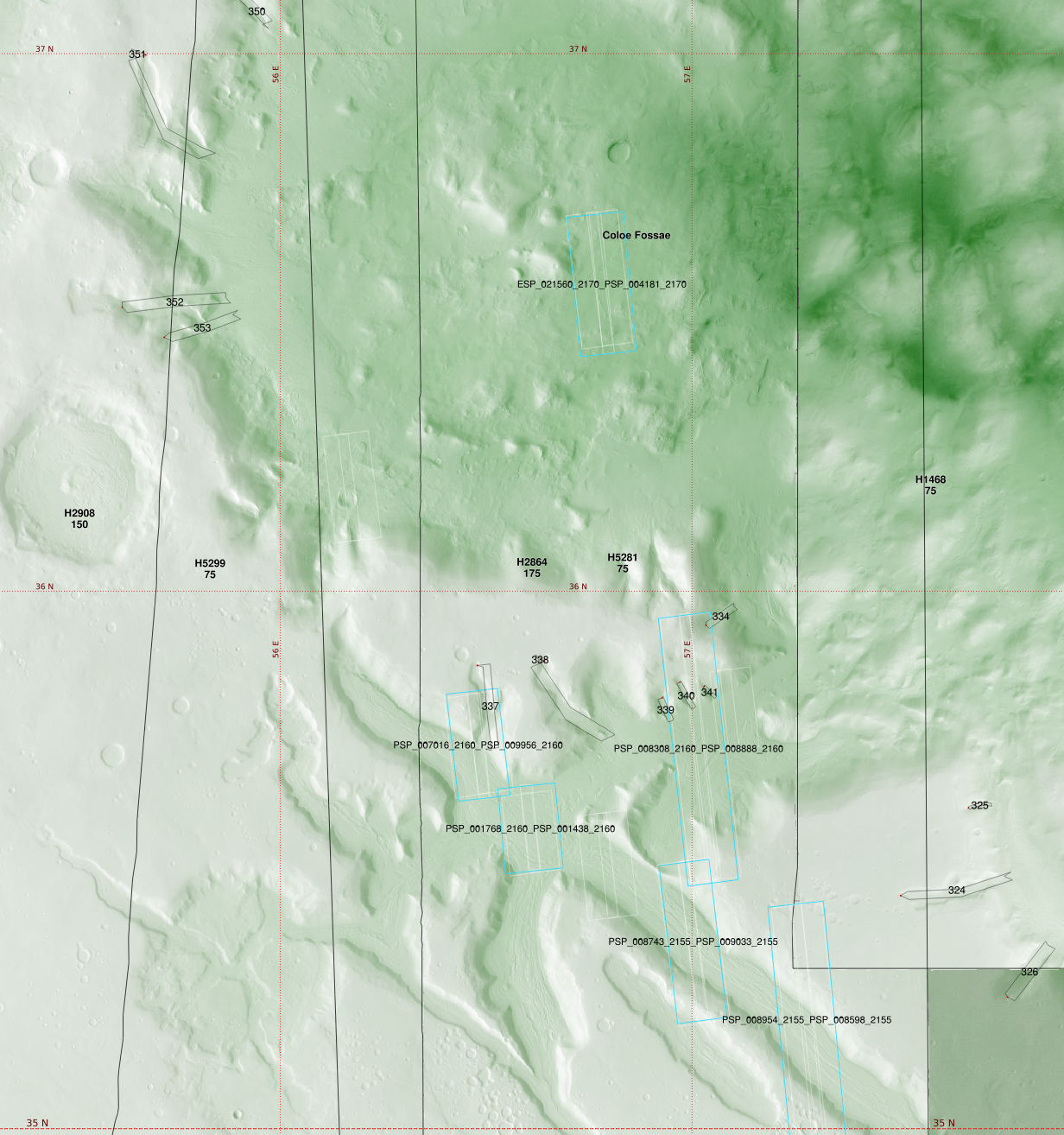

Coloe Fossae area ( ~ 56°E, 36°N)

3D anaglyphs:

• PSP_007016_2160
• PSP_001768_2160
• PSP_008308_2160
• PSP_008743_2155
• PSP_008954_2155
• PSP_008809_2215

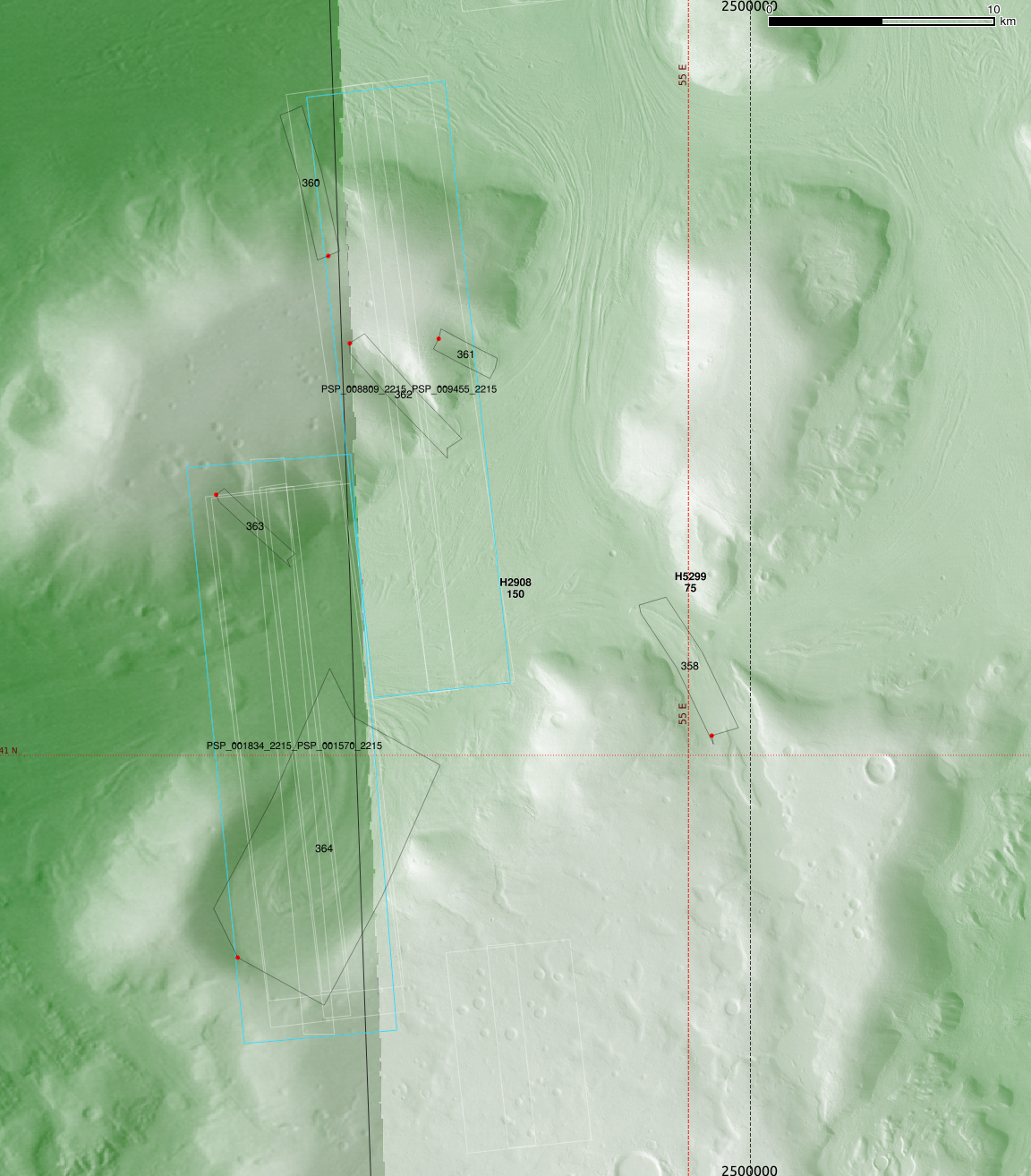

Souness 364 (55°E, 41°N)

This region was been studied in detail in a paper published by Souness & Hubbard (2013) who addressed the question of whether it was formed by ice moving into the alcove in a former time when there was a widespread ice sheet in the region and later downwasted, or by ice moving out of the alcove more recently, favouring the latter hypothesis.

Unfortunately most of S364 is covered only by a 150m resolution DTM though other GLFs in the area are covered at 75m resolution.

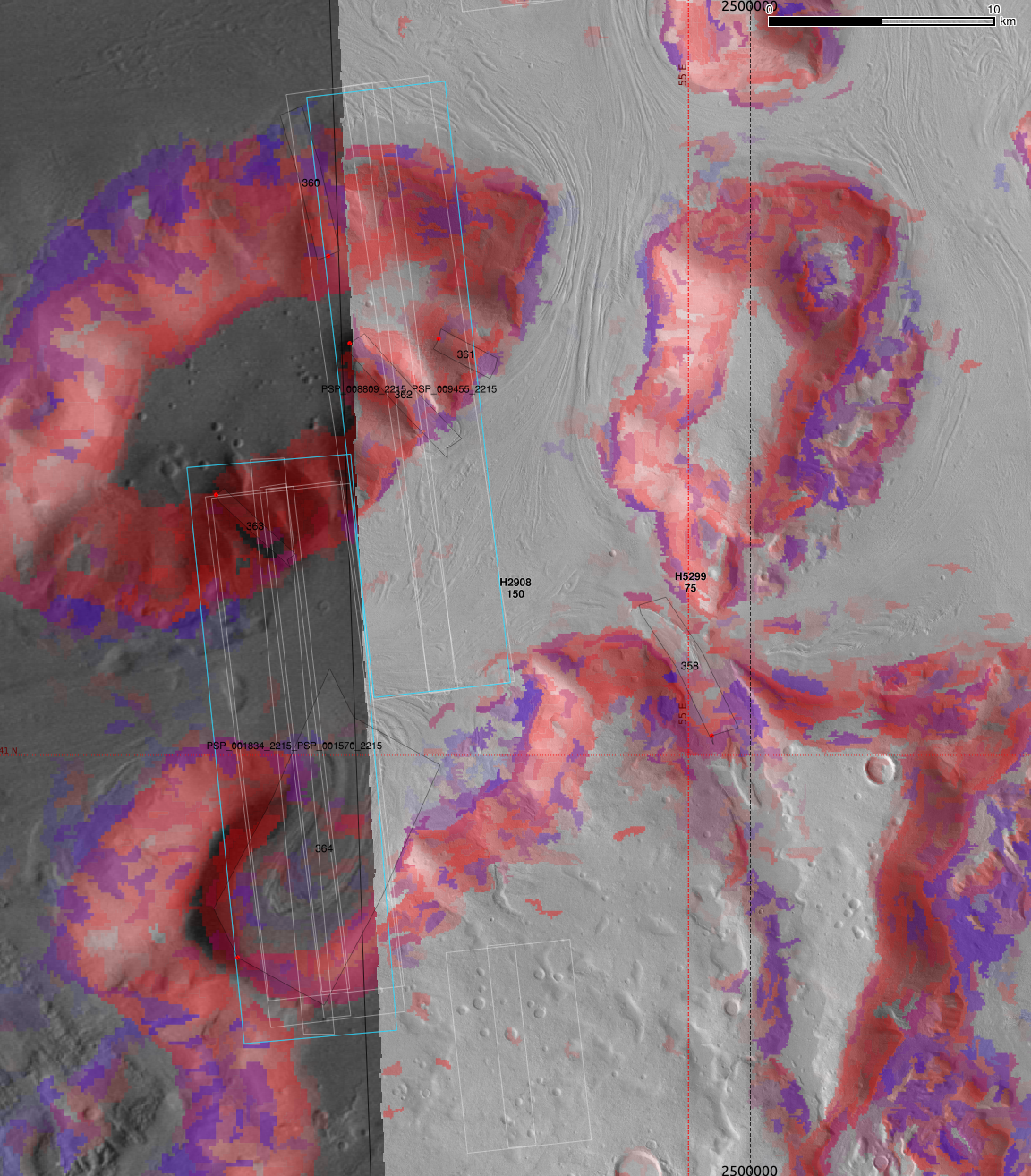

The classifier shows terrain similar to GLF head areas surrounding S364.

3D anaglyph PSP_001834_2215 overlapping Souness 364, and 363.

3D anaglyph PSP_008809_2215 overlapping S360, 361, and 362.



The northern hemisphere elevation dichotomy boundary, between the flat plains in the north and the highlands to the south is where a large number of glacial landforms have been seen.

Here is the area around Deuteronilus Mensae:

Summary of general area, with elevation blended with MOC mosaic, and HRSC tiles overlaid with colour-coded elevation blended with nadir image.

Colour-coded MOLA elevation alone

MOLA elevation, blended with hillshade

h5314

A crater at 6°W, 38°N, with two Souness GLFs in the crater wall within the HRSC tile h5314.


Elevation blended with HRSC nadir image. Souness 1 is the lowest elevation GLF in this part of the northern hemisphere (there is a cluster around 120°E, 40°N that are lower) at a head elevation of -4222m.

The classifier, showing topographic similarity to head and extents of Souness GLFs.

There are several HiRISE images available of this crater, including ESP_019070_2185, ESP_028050_2185, and a 3D anaglyph ESP_034287_2185.

ESP_019070_2185 on the east wall of the crater

ESP_028050_2185

The 3D anaglyph ESP_034287_2185_ESP_035078_2185 covering the area around the central mound and the north wall.

h5285

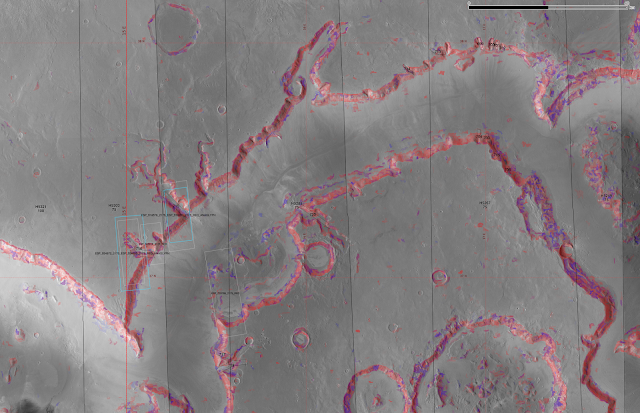

Showing an area around 16°E, 37°N  within tiles h5321, h5303, h5285, h5267 and h5249. A number of Souness GLFs are evident.

There are two HiRISE 3D anaglyphs overlapping Souness GLFs in this area.

ESP_034972_2175_ESP_034695_2175

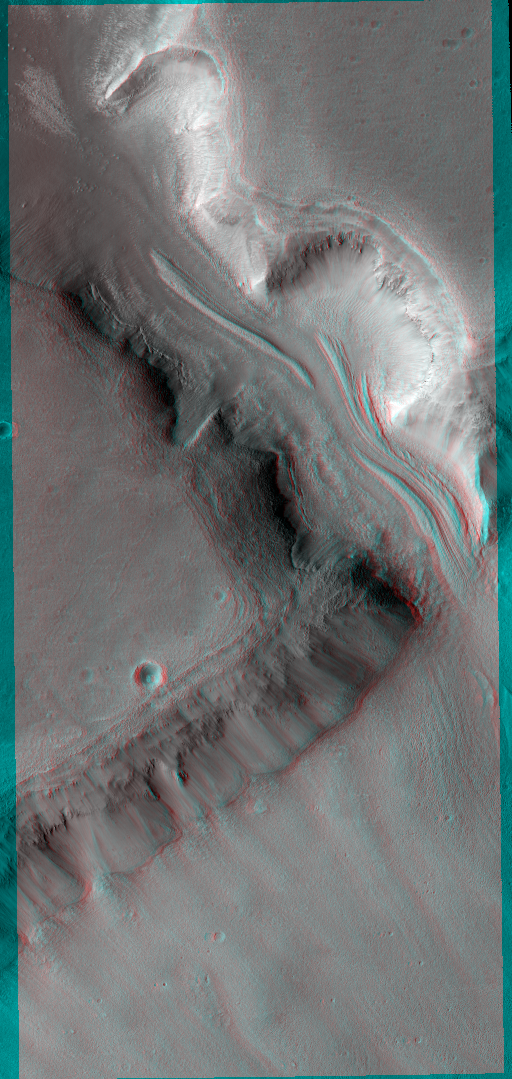

ESP_016076_2175_ESP_016221_2175

HiRISE image http://www.uahirise.org/ESP_035618_2175. In finding the link for this I was pleased to find it was made into a 3D anaglyph after the publication of my dissertation.

ESP_036884_2175_ESP_035618_2175



h1483

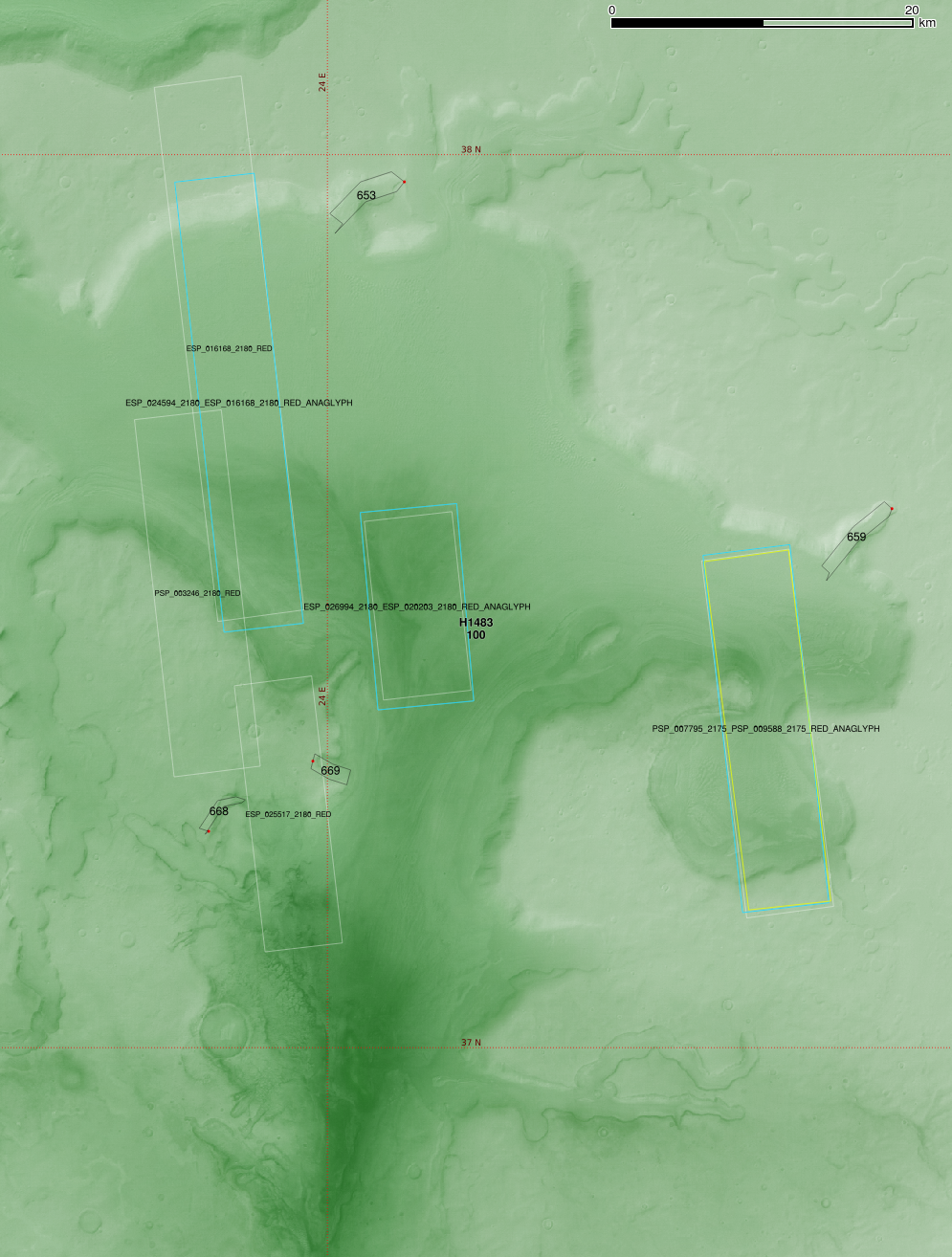

An area around 24°E,  37°N, with a number of Souness GLFs with anaglyphs in the vicinity of, but not overlapping them. At the lower right, there is a high resolution HiRISE DTM available for the area south of Souness 659.

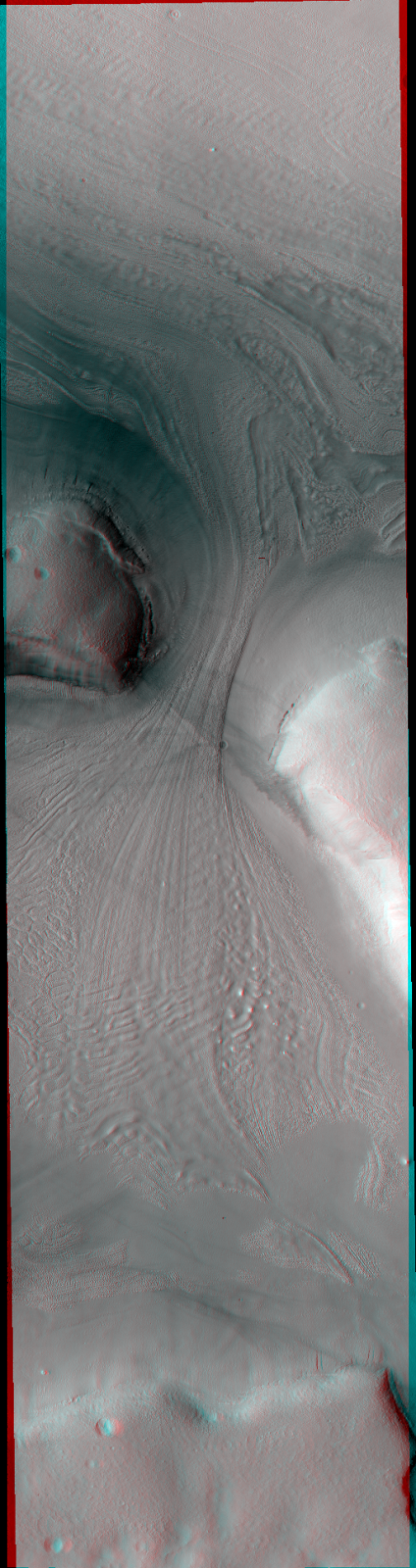

3D anaglyph PSP_007795_2175_PSP_009588_2175 to the south-west of Souness 659. This area also has a HiRISE DTM available. Other anaglyphs close to Souness GLFs nearby are ESP_024594_2180, ESP_026994_2180.

h1450

An area at 29°E, 41°N in HRSC tiles h1450 and h1426, containing a number of Souness GLFs.



The 3D anaglyph PSP_006806_2215 overlapping Souness 619.

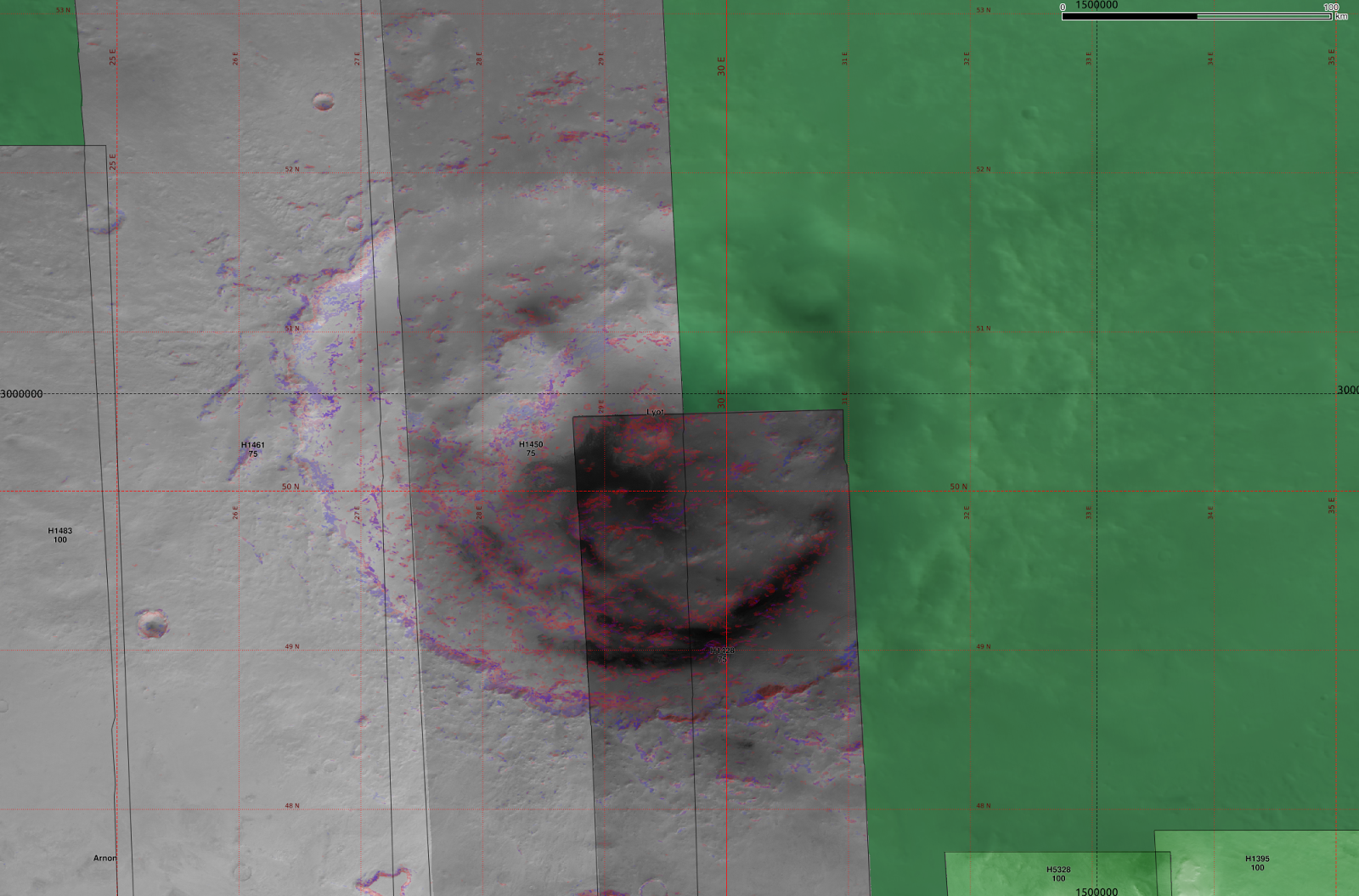

Lyot crater

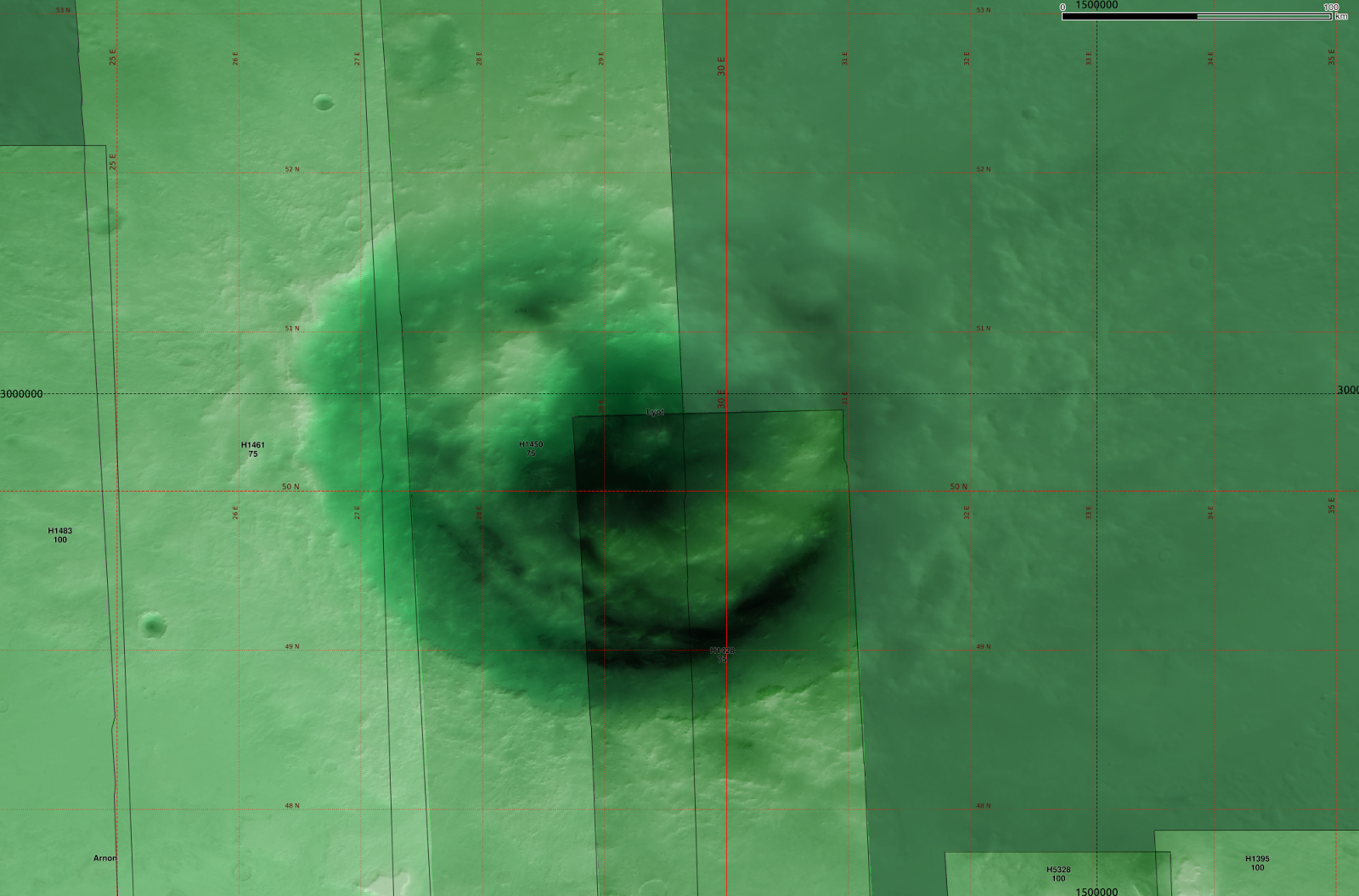

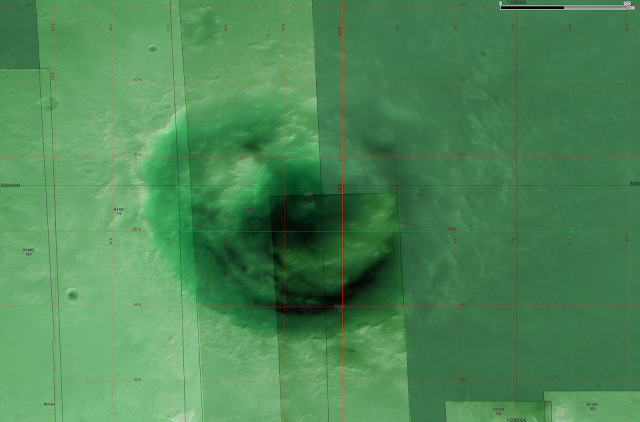

Lyot crater at 30°E, 50°N is the deepest point in the Northern Hemisphere of Mars with a floor elevation of ~ -7000m. There are no Souness GLFs found in it, although the classifier does pick up substantial areas of topographic similarity to extent and head areas. The has been a study showing evidence for liquid water and fluvial activity in the (relatively) recent past: Dickson et al. 2009.

Here is a series of Google Earth screenshots of part of Lyot, with the CTX imagery mosaic:

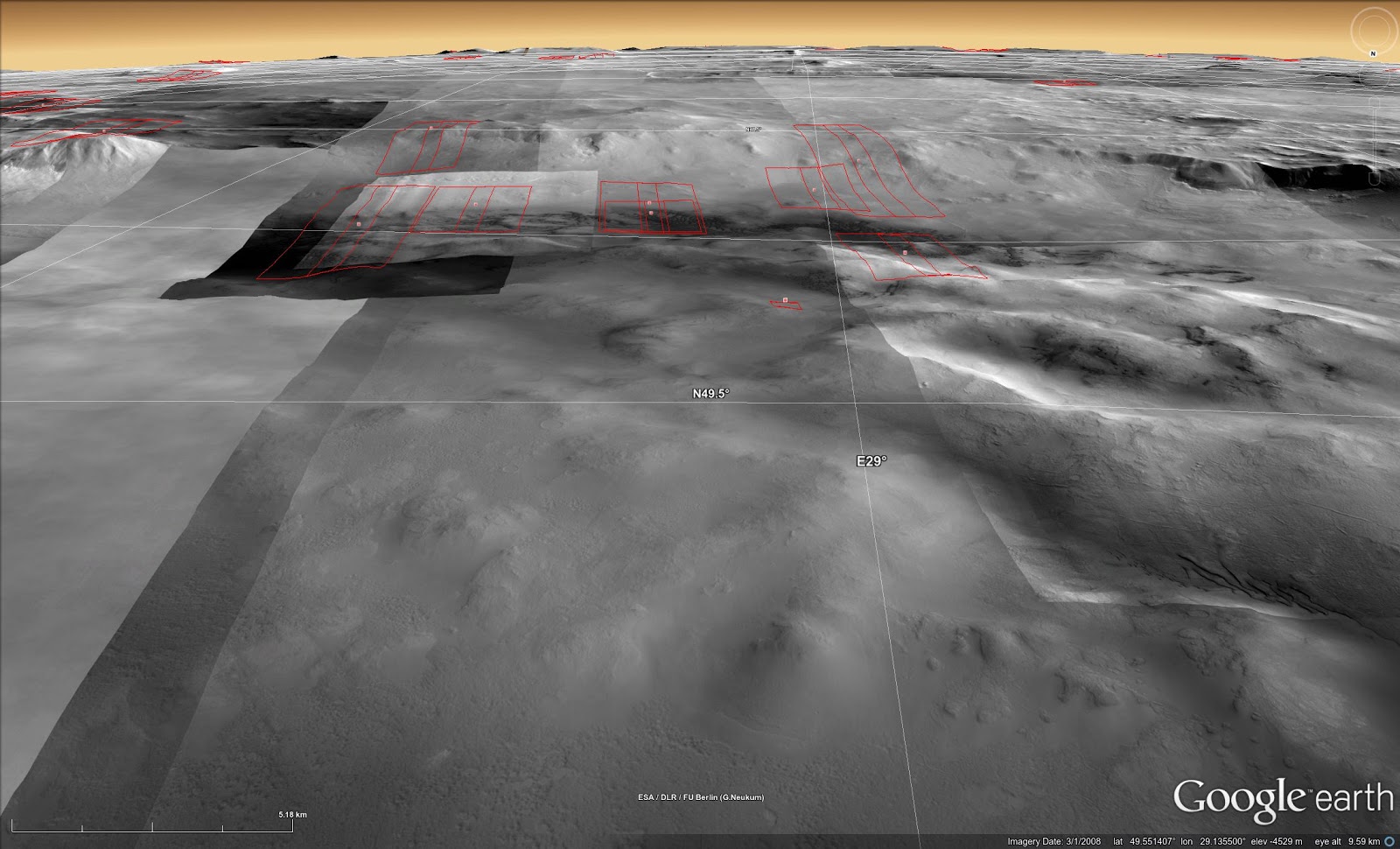

From near the centre of the crater, looking S. A large area of dark dunes is seen in the foreground.

Moving south, across some mountains within the crater rising to about ~-4000m.

The southern outer wall perhaps showing some remnants of glacial activity? This would be interesting, because given studies arguing for a microclimate allowing for liquid water at relatively late epochs, perhaps there is a critical elevation below which glaciers were not preserved due to higher ablation, with a thicker atmosphere at the lowest elevations allowing more wind erosion and high temperatures?
